NexLight 2-Wire Daylight Sensor
Product Description

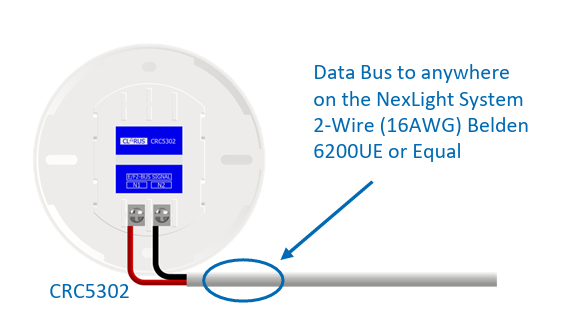

The CRC5302 2-Wire Ceiling Mount Daylight Sensor Unit (ODU) senses ambient daylight within an area and automatically adjusts the 0-10V dimming load associated with it based on current LUX level readings. The device gets power and communication from the NexLight 2-Wire databus, no power packs required. After mounting and setting of initial address, all features and settings can be adjusted via IPC/SPC software.
.png)
.png)
Customers
No items found.
Commercial Lighting
Helping organizations across Canada devise sustainable, energy-efficient and cost-effective solutions, from lighting design to electric vehicle charging.
Canadian owned
Leader in Western Canada
Consultation with every order
Features & Benefits
- Senses the ambient light level of an area (0.74-190 Foot-candle, 8-2048 Lux)
- Current sensing Lux level is indicated on IPC/SPC software
- Can set max and min thresholds with corresponding level of dim output via IPC/SPC software
Specifications
Size:
4.13” Ø x 2.56” D (Overall)
(105Ø mm x 65mm)
Weight
3.52 oz
Mounting
Drop Ceiling
Junction box with mud ring
4” Octogon or Handy Box
Input Signal
±24VAC/VDC
15 mA
Operating Temp
14 to 131°F (-10 to 55°C)

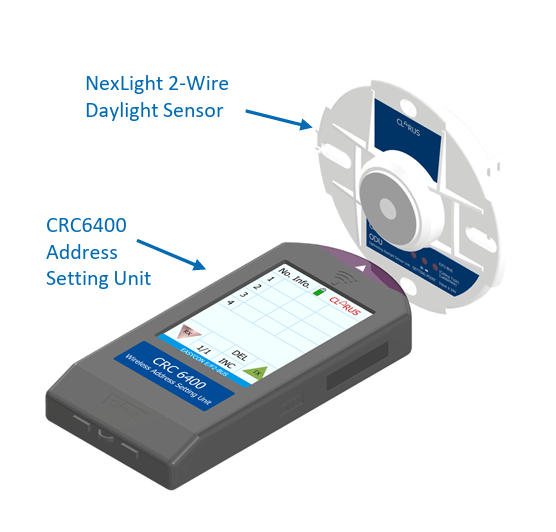

Programming
Via CRC6400
IPC/SPC Setting Menu
