NexLight 2-Wire LCD Touch Screen
Product Description

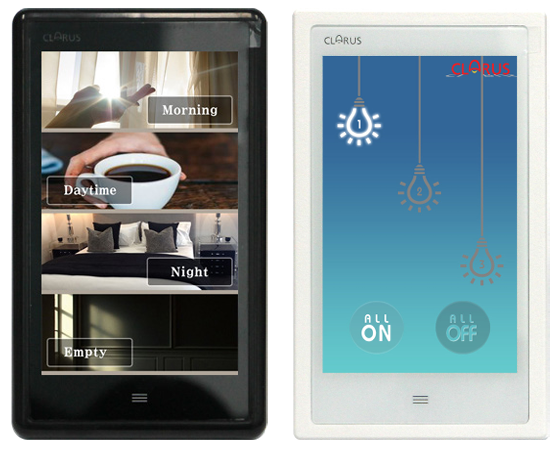

NexLight CRC3305/CRC3325 2-Wire LCD Touch Screen provides elegant and sophisticated user controls to any NexLight 2-Wire controlled building. It provides easy to use and configure graphic buttons for Individual, Group, Pattern and Scene ON/OFF and Dimming control.
.png)
.png)
Customers
No items found.
Commercial Lighting
Helping organizations across Canada devise sustainable, energy-efficient and cost-effective solutions, from lighting design to electric vehicle charging.
Canadian owned
Leader in Western Canada
Consultation with every order
Features & Benefits
- Operates using the 2-Wire Bus only
- All Programming stored and read through onboard memory
- Easy to use Windows-based Software for programming/editing screens and buttons
Specifications

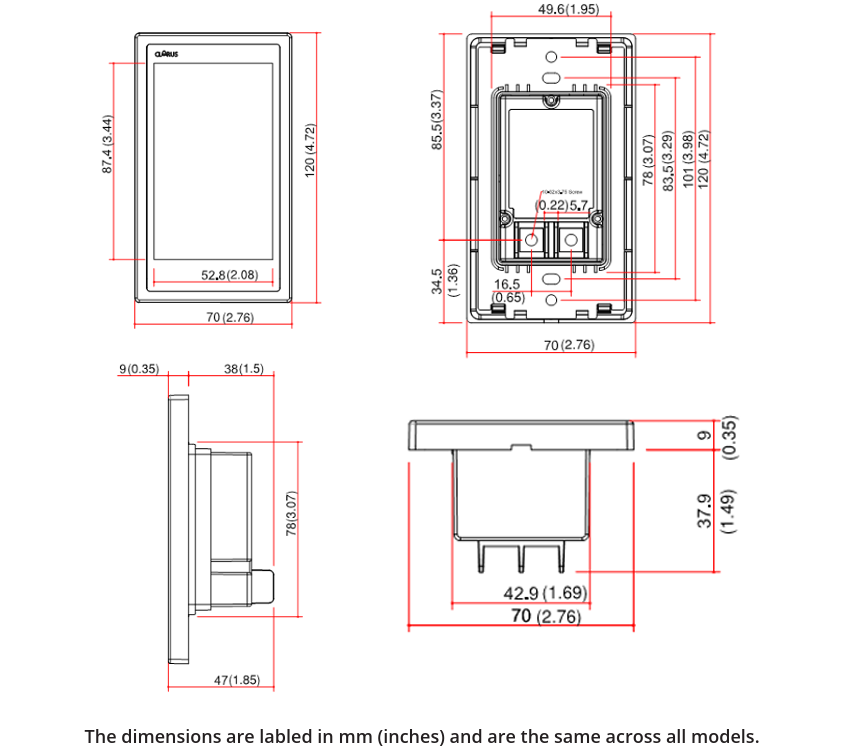

Size
4.724”H x 2.756”W x 1.642” (Overall)
(120mm x 70mm x 41.7mm)
Weight
4 oz
LCD
4” TFT LCD Capacitive Type
Projective Capacitive Touch
LED Backlight
Mounting
Single Gang Switch Box
Input Signal
±24VAC
33 mA
Operating Temp
14 to 131°F (-10 to 55°C)
Backup Memory
Onboard memory
Programming
Via TLS4 Editor
